Gtem 3000
OVERVIEW

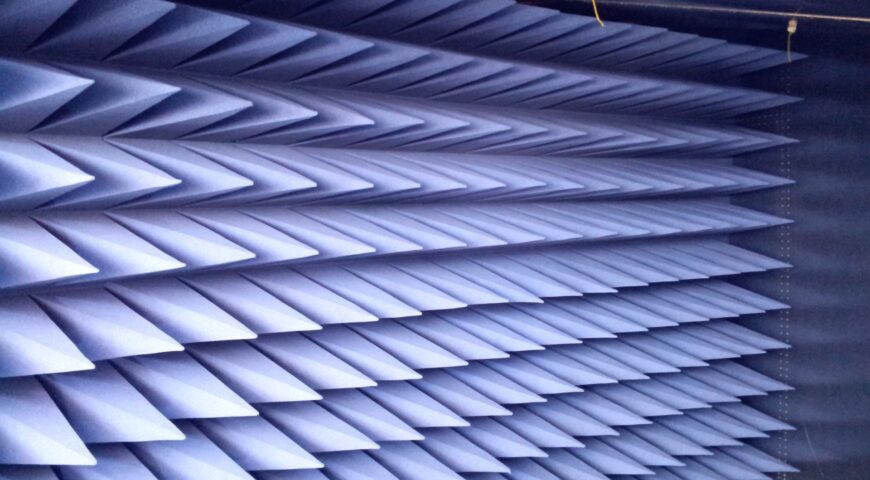

The GTEM cell is, in principle, a tapered coaxial line (offset septum plate), which is terminated by a hybrid combination of discrete resistors and RF absorbers to achieve a 50 Ohm broadband match. It is applied for the Measuring of Emission, Radiated, radio frequency field-immunity test.

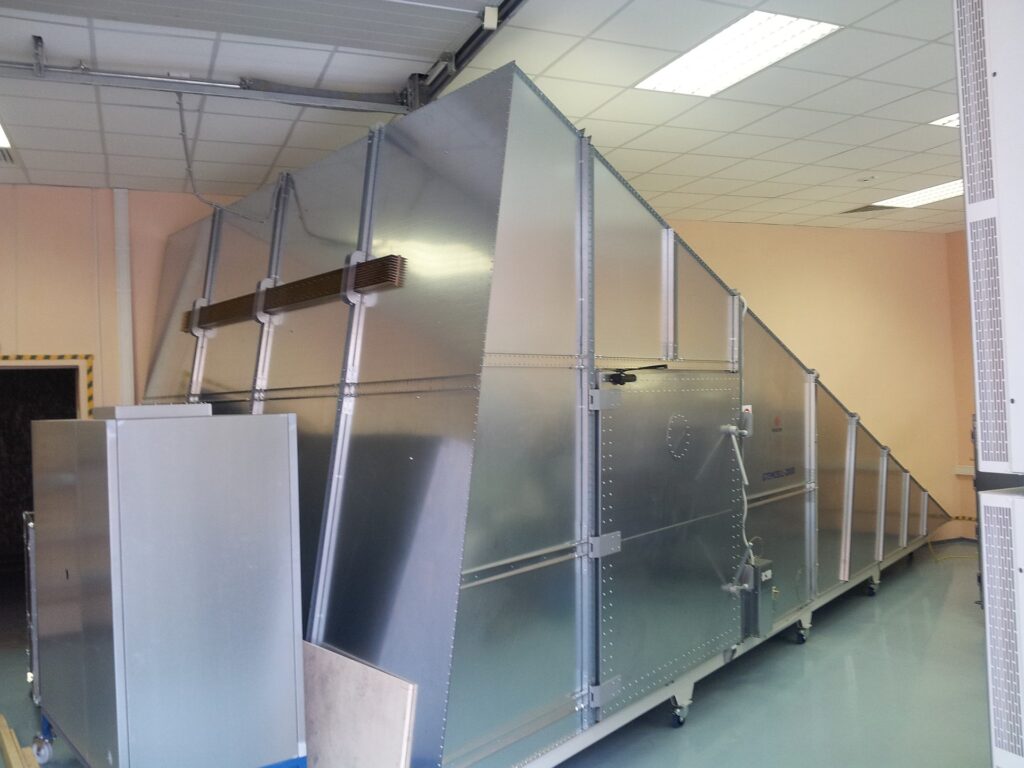

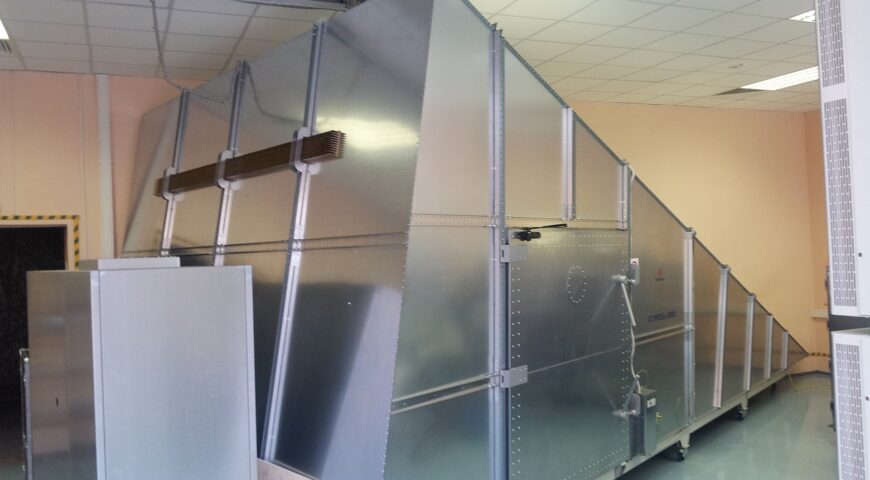

Model GTEMCELL GTEM 3000 is our Top chamber! It offers a wider operating bandwidth with peak smoothed and flat response starting from DC to microwave frequencies. It is an indispensable tool for researchers and developers engineers!
Many options are available including the XYZ manipulator
DATASHEETS
If you’re ready to get started, request a quote and a contact of the nearest representative: You will get in touch to assess your needs.
Mean Features
- Engineered and completely manufactured in Italy.
- Ruggedized models in hot galvanized steel, Aluminium Avional, and Inox stainless steel made.
- Unique compact design. We design and produce alone all the details!
- Optimized for EMI and EMC in a single, shielded environment.
- Strong fields achieved with low input power
- Broadband up to 20Ghz
- High effective shielding with 5 labyrinth rows of metallic gaskets
- wide EUT access and comfortable door lock
- Fully customizable feed throws and filters
- Meets the basic standard: IEC/EN 61000-4-20
- Meets standards for emissions testing: CISPR 14-1, IEC 61000-6-3, and IEC 61000-6-4 for EUTs without connected cables
- Fields generated are largely homogeneous and simple to calculate
- Efficient power conversion requires a smaller power amplifier
- Low VSWR over the entire frequency range – no need for measurement of reflected power
- Excellent quality at a Low cost
- Ideal for design qualification and pre-certification. The right tool in your lab!
Standard configuration ·

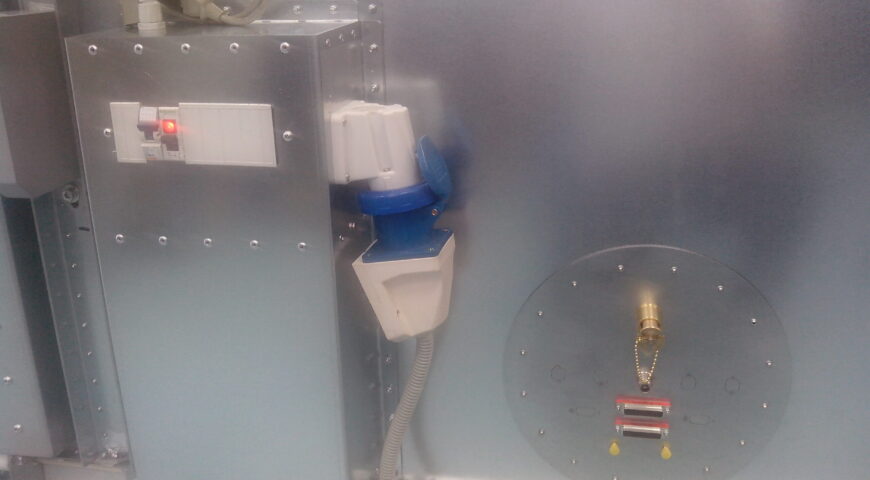

The door offers a clear opening of (W)100cm x (H)200cm with N.4 labyrinth rows of gaskets on the frames and an easy lock system· Shielded Window in the door: Optional. Technical panel with Feedthrough waveguide for 3 couples of fiber optics, N.2 SMA-SMA female feed-through, N.1 N-N female feed-through, Multimedia filter module with N.2 RJ45, N.2 USB, N.1 DB9 (RS232) feed-throughs. · Filters: 2x16A 250V AC Mains EMI Filter with IEC and Shuco plugs, 2x10A AC/DC 250V secondary EMI Filter. The unit is sold in a Kit and assembled on-site. It is Shipped and packed in N.2 crates plus N.12 carton boxes for the absorbers.
